FDQ Full Automatic Stripping Roll Die Cutting Machine

FDQ Full Automatic Stripping Roll Die Cutting Machine
FDQ Full Automatic Stripping Roll Die Cutting Machine
FDQ Full Automatic Stripping Roll Die Cutting Machine
FDQ Full Automatic Stripping Roll Die Cutting Machine

Introduction:

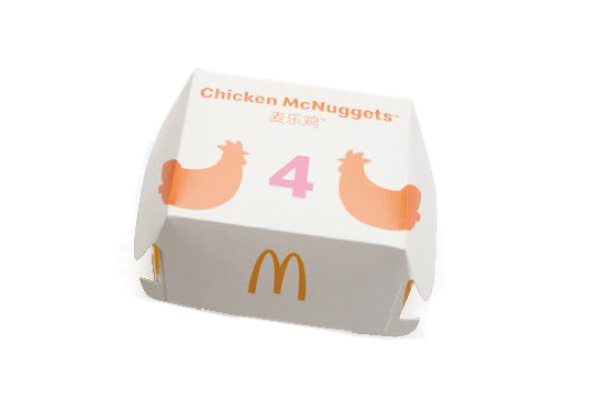

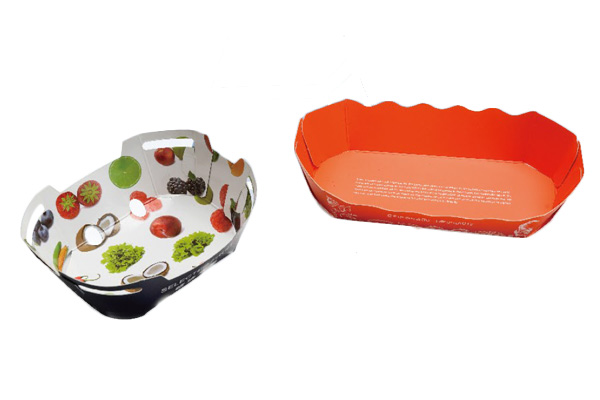

FDQ Full Automatic Stripping Roll Die Cutting Machine is widely used in paper packaging field, such as KFC paper box, Mcdonald's paper box packaging, Corona Beer paper packaging and so on. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, saftey and reliability.



MODEL FDQ1100X780 FDQ1200X780 FDQ1400X780 FDQ1600X780
Max Cutting Area 1050x740mm 1150x740mm 1350x740mm 1550x740mm
Total Weight 12T 13T 14T 15T
Dimension L 12500mm
W 4500mm
H 2000mm
L 12500mm
W 5000mm
H 2000mm
L 12500mm
W 5500mm
H 2000mm
Cutting Precision Paper Gram Weight Production Capacity Air Pressure Requirement
±0.15mm 180-600g/m² 110-140 times/min 0.5Mpa
Air Pressure Consumption  Max Cutting Pressure Max Cutting Pressure Total Power
0.25m³/min 300T 1600mm 30kw
