Introduction:

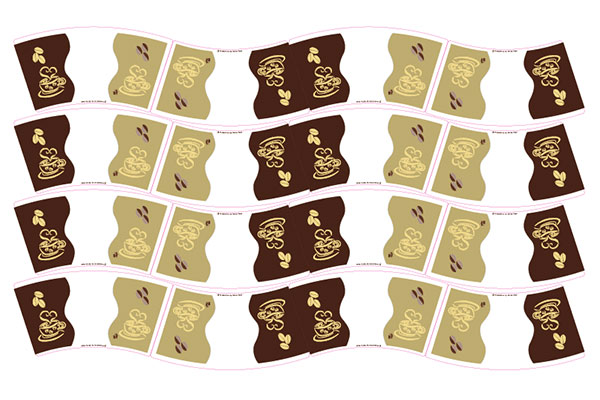

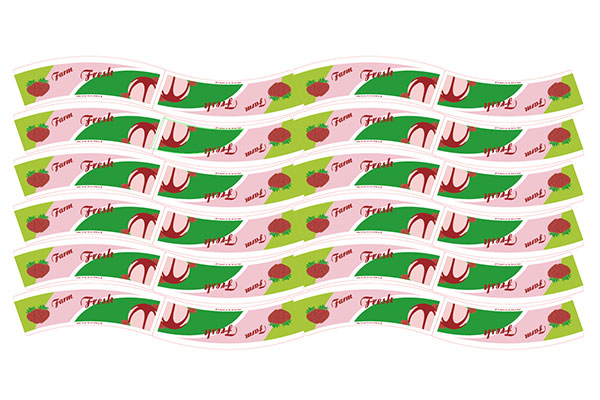

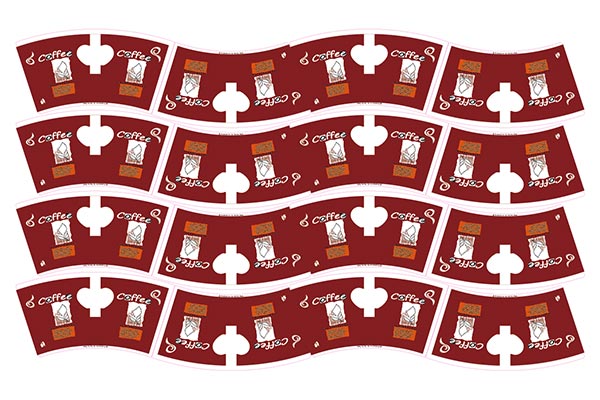

FDYC series automatic roll punching machine inline flexo printer based on international advanced technology, it’s widely used in paper cup, paper bowl and paper plate and other paper products. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication, inline flexo printing.
1. Adopt the anilox roller to spread ink.
2. Unwinding tension is controlled by automatic tension controller from Japan Mitsubishi.
3. Each printing unit adopt 360°for registration.
4. Each printing unit have one IR dryer
5. The rubber roller can break away automatically while parking, and run at a low speed in order to avoid ink being dry.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Web guiding, printing, IR drying and punching can be finished in one process
Technical Specification
| Model | FDYC850 | FDYC920 | FDYC1000 |
| Max Paper Width | 850mm | 920 | 1000 |
| Cutting Precision | ±0.20mm | ||
| Paper Gram Weight | 150-400g/㎡ | ||
| Production Capacity | 280-380times/min | ||
| Air Pressure Requirement | 0.6Mpa | ||
| Air Pressure Consumption | 0.25m³/min | ||
| Max Roller Diameter | 1500mm | ||
| Flexo Print Units (IR dryer) | 2 - 6 Colors | ||
| Web Guiding | 1 | ||
| Printing Repeat Length | 10” - 22.5” | ||
| Gear Pitch | 1/8” (3.175mm) | ||
There are six types of flexo printing machines commonly used in the printing industry.
Flexo printing machines are commonly used for printing packaging materials such as cartons, paper bags, plastic bags, flexible packaging films, and labels.
The principle of flexographic printing involves the use of a flexible printing plate, usually made of rubber or photopolymer material.
Flexographic printing presses include holds the paper roll, printing unit, boot the system, drying system, cutting & trimming and Stacking Sections.
Please contact with me directly
